The Tavalux stands on a solid, machined aluminum base with a perforated aluminum shade backed by a white opal acrylic diffuser. A slim shaft supports the shade with a heavy duty harp and a 1-1/2" tall finial.

The base and shade have a soft bead-blasted finish; the stem and finial are silver powder coat. The base rests on four soft rubber feet. The lamp has a porcelain socket and a full range dimmer on its cord.

Lamping - medium screw base

halogen: max. 100 watt A19, T8/10, BT15

compact fluorescent: max. 21 watt A19/21, spiral

LED: max. 21 watt A19/21

The Torchli has a solid, machined aluminum base that rests on four soft rubber feet. Mounted on this is a cone shaped shade of perforated aluminum trimmed top and bottom with solid aluminum rings all with a soft bead-blasted finish. The shade is backed by a white opal acrylic diffuser and is open at the top to throw light towards the ceiling. The lamp has a porcelain socket and a full range dimmer on its cord.

Lamping - medium screw base

halogen: max. 250 watt A19/21/23, T8/10, BT15

compact fluorescent: max. 85 watt A19/21/23, spiral

LED: max. 25 watt A19/21/23

SKUPINA FINA 17

The Skupina Fina 17 has an aluminum dish with a non-directional sanded finish pierced by a pattern of 24 candelabra sockets. The dish has a half-sphere bottom nut and a flat top plate. The nut, stem and canopy are silver powder coat. Many types of bulbs are available for this fixture including globes, torpedo and flame shapes, pear shape and tubular.

Lamping - 24 x candelabra screw base: B/C/CA (torpedo), G (globe), S (straight side), T (tubular), spiral

Max. 60 watt - incandescent, xenon, compact fluorescent, LED

------------------------------------

SKUPINA CORSO 17

This fixture has the same aluminum dish as above, but with a pattern of 12 standard (medium) sockets. Bulbs available for this fixture include standard, globe, flame and torpedo shapes, reflector and tubular.

Lamping - 12 x medium screw base: A (standard), B/C/CA (torpedo), G (globe), R (reflector), S (straight side), T (tubular), spiral

Max. 100 watt - incandescent, xenon, compact Fluorescent, LED

------------------------------------

SKUPINA CEILING FINA & CORSO, 17

These surface-mounted fixtures are the same fixtures as above fixtures, but made to mount directly to the ceiling. The stem is replaced with a set of neoprene feet on the top plate to set the dish just off the ceiling.

Lamping

see above

SKUPINA FINA 30

The Skupina Fina 30 has an aluminum dish with a non-directional sanded finish pierced by a pattern of 62 candelabra sockets. The dish has a half-sphere bottom nut and a flat top plate. The nut, stem and canopy are silver powder coat. Many types of bulbs are available for this fixture including globes, torpedo and flame shapes, pear shape and tubular.

Lamping - 62 x candelabra screw base: B/C/CA (torpedo), G (globe), S (straight side), T (tubular), spiral

Max. 25 watts - incandescent, compact fluorescent, LED

-----------------------------------

SKUPINA CORSO 30

This fixture has the same aluminum dish as above, but with a pattern of 36 standard (medium base) sockets. Bulbs available for this fixture include standard, globe, flame and torpedo shapes, reflector and tubular.

Lamping - 12 x medium screw base: A (standard), B/C/CA (torpedo), G (globe), R (reflector), S (straight side), T (tubular), spiral

Max. 40 watt - incandescent, compact fluorescent, LED

------------------------------------

SKUPINA CEILING - FINA & CORSO, 30

Incandescent, Halogen, Fluorescent

These surface-mounted fixtures are the same fixtures as above, but made to mount directly to the ceiling. The stem is replaced with a set of neoprene feet on the top plate to set the dish just off the ceiling.

Lamping

see above

Up and down light are produced using a dish of perforated aluminum which reflects 80% of the light downwards and allows the rest to pass through to fill the ceiling. Light is provided by four bullets (three in the 36” model). The dish is edged in black neoprene and is adjustable along the stem; the bullets are adjustable in angle.

The bullets, canopy, stem and center box are painted silver powder coat. Stem up to 36” included with fixture.

Lamping - 3, 4 or 6 x medium screw base

halogen: max. 250 watt PAR30/38

compact fluorescent: max. 30 watt BR30/40, PAR30/38

LED: max. 24 watt BR30/40, PAR30/38

Options

Available with 3, 4 or 6 bullets

The Dish Uplight provides both direct and indirect light, throwing a very broad field of light upwards and directing a soft beam downwards through a 6” fresnel lens in the light port at the bottom of the dish.

The dish is brushed aluminum. The canopy and stem are painted silver powder coat. Stem up to 36” included with fixture.

Lamping

24 inch: max. 150 watt EDF double envelope

OR max: 22 watt ‘cornrow’ LED

36 inch: max. 250 watt EDF double envelope

OR max: 45 watt ‘cornrow’ LED

The Radius Chandelier throws a soft rectangle of light downwards through its translucent fiberglass diffuser. Designed to be suspended either low over tables, showcases, counters or bars, or hung high for general lighting.

The corrugated fiberglass diffuser is mounted in a brushed alumi-num frame suspended from a ‘lighting pipe’. The stem, canopy and lighting pipe are silver powder coat. White porcelain sockets. Stem up to 36” included with fixture.

Lamping - 6 x medium screw base

halogen: max. 75 watt PAR20/30

fluorescent: max. 16 watt R20/30, PAR20/30

LED: max. 18 watt R20/30, PAR20/30

This indirect fixture lights the ceiling with a broad wash of light. The open construction allows for little interference with the light bounced from the ceiling. The design lends itself well to custom shapes and sizes.

The fixture is painted silver powder coat; white porcelain sockets. Stem up to 36” included with fixture.

Lamping - 8 x medium screw base

halogen: max. 100 watt PAR20/30

fluorescent: max. 16 watt R20, BR30, PAR20/30

LED: max. 18 watt R20, BR30, PAR20/30

Options

Unlimited possibilities in size and configuration

This fixture envelopes a room with soft light, which streams from the bottom of the fixture through a frosted glass lens, flows out through the large perforations of the shade and spreads out the open top to f ill the ceiling.

The shade is perforated aluminum backed by a white opal acrylic diffuser held top and bottom by machined aluminum rings. The canopy, stem and center box are painted silver powdercoat. Stem up to 36” included with fixture.

Lamping - medium screw base

halogen: max. 250 watt A19/21, BT15, T8/10

compact fluorescent: max. 42 watt A19/21/23, spiral

LED: max. 25 watt A19, 21, 23

The Vee Chan delier fills a space with soft light with both direct light through the diffuser lined perforated shade, and indirect light out the open top of the fixture.

The shade is perforated aluminum with solid brushed aluminum end panels. A lighting pipe within has six heavy duty porcelain sockets.

The canopy, stem and lighting pipe are painted silver powder coat. Stem up to 36” included with fixture.

Lamping - 6 x medium screw base

halogen: max. 150 watt A19/21, BT15, T8/10

compact fluorescent: max. 42 watt A19/21, spiral

LED: max. 19 watt A19/21

The Cylindric Pendant consists of five cylinders of perforated aluminum with 2” solid aluminum top bands. If lamped with clear showcase bulbs, the tubes cast patterns of light through the perforations with a pool of light sent out the open bottom; if lamped with PAR bulbs, the fixture works as a downlight, throwing five pools of light below while lighting up the perforations. The Cylindric Pendant was designed primarily for use over tables, counters, bars, etc.

The tubes are perforated aluminum with a sanded aluminum top band; the canopy, stem and crossbar are painted silver powder coat. Stem up to 36” included with fixture.

Lamping - 1, 3 or 5 x medium screw base

incandescent: max. 75 watt T8/T10 (12" long) (shown in photo)

halogen: max. 100 watt PAR16/20/30, T8/10

compact fluorescent: max. 23 watt R20,BR30, PAR20/30

LED: 5 watt LED 12” T10 or max. 18 watt R20, BR30, PAR20/30

Options

Many custom configurations are possible.

This general lighting fixture has a perforated drum shade that throws patterned light around the room. The open top allows light to fill the ceiling and a 4” open bottom port cast a pool downwards.

The drum is perforated aluminum in a sanded aluminum frame; the canopy and stem are painted silver powdercoat. Stem up to 36” included with fixture.

Lamping - medium screw base

halogen: max. 150 watt A19, T8/10

compact fluorescent: max. 21 watt A19/21, spiral

LED: max. 18 watt A19/21

Options

Optional white opal acrylic diffuser.

This fixture can fill even large spaces with soft bounced light. The spread of the light pattern can be adjusted by the bullets’ angle.

The bullets are spun aluminum. Fixture is silver powder coat. Stem up to 36” included with fixture.

Lamping - 3, 4 or 6 x medium screw base

halogen: max. 250 watt PAR30/38

fluorescent: max. 30 watt BR30/40, PAR30/38

LED: max. 25 watt BR30/40, PAR30/38

Options

Available with 3, 4 and 6 bullets. Variation shown below is 4 bullets up plus one bullet down.

This is a downlight only version of the Bi-Directional Chandelier made of large diameter pipe and fittings.

The socket housings and guards are natural cast aluminum, the rest of the fixture is painted silver powder coat. Stems up to 36” included.

Available in ‘A’ with clear glass, ‘B’ with glass sandblasted on the interior or ‘PR’ with prismatic glass. See options page.

Lamping - 3 x medium screw base

halogen: max. 150 watt A19/21, T8/10

compact fluorescent: max. 42 watt A19/21, spiral

LED: max. 21 watt A19/21

Options

Many sizes and configurations available.

Available without guards.

This fixture is a uplight only version of our Bi-Directional Chandelier. It provides soft bounced lighting for medium to large spaces.

The hoods are white powdercoat, the socket housings are natural cast aluminum, and the rest is painted silver powder coat. Stem up to 36” included with fixture.

Lamping - 2, 3 or 4 x medium screw base

halogen: max. 150 watt A19/21, BT15, T8/10

fluorescent: 42 watt A19/21/23, spiral

LED: max. 21 watt A19, 21, 23

Options

Can be custom made in many sizes and configurations.

Industrial Uplight - medium screw base

This large linear fixture features both uplight and downlight elements wired in two circuits for separate control. This allows for a high degree of lighting flexibility. Many variations are possible using different ‘heads’, custom spacing, sizes and stem lengths.

The hoods are painted white powdercoat, the socket housings are natural cast aluminum, the rest of the fixture is painted silver powder coat. Stem up to 36” included with fixture.

Available in ‘A’ with clear glass, ‘B’ with glass sandblasted on the interior or ‘PR’ with prismatic glass. See options page.

Lamping - medium screw base

Down light elements x 4

incandescent: max. 50 watt R20, 100 watt A19

halogen: max. 50 watt PAR20, 72 watt A19

fluorescent: max. 14 watt R20/PAR20, 26 watt A19, spiral

LED: max. 10 watt R20/PAR20, 21 watt A19

Up light elements x 4

halogen: max. 250 watt A19/21, BT15, T8/10

fluorescent: max.68 watt A19/21/23, spiral

LED: max. 21 watt A19/21/23

Options

Complete flexibility in number of 'heads', arrangement of up and down elements and spacing.

The Hexapar is an adjustable, uplight only version of the Hexalux. Six short arms on knuckles hold white porcelain sockets; changing the angle of the sockets alters the spread of the light. It is shown with PAR30 short bulbs, but can be lamped with a wide variety of bulbs. The fixture is painted silver powdecoat. Stem up to 36” included with fixture.

Lamping - 3, 4 or 6 x medium screw base

halogen: max. 120 watt PAR20/30 (shown)/38

fluorescent: max. 30 watt R20, BR30/40, PAR20/30/38

LED: max. 26 watt R20, BR30/40, PAR2030/38

Options

Available with 3,4 or 6 arms. Designed as a ceiling bounce light fixture, but could be used as a general lighting fixture with any medium screw base bulb.

The Fresnel Cylinder is a trim, small halogen downlight for surface mounting. The 6” fresnel lens is sandblasted to give a soft, broad beam of light. The vent between the main housing and top short socket housing lets a ring of light shine through that makes the fixture appear to float on the ceiling. Housing is heavy, brushed aluminum.

Lamping - mini-candelabra screw base

halogen, xenon: max. 100 watt T3/T4

The Hexalux family of fixtures are made for general lighting. They provide a lot of light for the price. Each has lamp holders arranged in a flat circle. The socket housings are natural cast aluminum, the rest of the fixture is painted silver powder coat. Stem up to 36” included with fixture.

Available in ‘A’ with clear glass, ‘B’ with glass sandblasted on the interior or ‘PR’ with prismatic glass. See options page.

Lamping - 3, 4 or 6 x medium screw base

halogen: max. 72 watt A19, BT15

fluorescent: max. 26 watt A21, /spiral

LED: max. 20 watt A19

Options

Arm length can be altered.

Hexalux A

B - Sandblasted glass globes,

PR - Prismatic glass globes,

Quadlux A

B - Sandblasted glass globes

PR - Prismatic glass globes

Trilux A

B - Sandblasted glass globes

PR - Prismatic glass globes

Adjustable Hexalux A

B - Sandblasted glass globes

PR - Prismatic glass globes,

Optional Guards available for all of the above

The Hexalux Granda is a larger fixture in the Hexalux family made for general lighting. Large lamp holders are arranged in a flat circle. The standard finish leaves the socket housings as natural cast aluminum with the rest of the fixture painted silver powdercoat. Stem up to 36” included with fixture.

Available in ‘A’ with clear glass, ‘B’ with glass sandblasted on the interior or ‘PR’ with prismatic glass. See options page.

Lamping - 3, 4 or 6 x medium screw base

halogen: max. 150 watt A19/21, BT15, T8/10

fluorescent: max. 42 watt A19/21, spiral

LED: max. 21 watt A19, 21

Options

Arm length can be altered. Can have 3, 4 or 6 arms.

See Options page for other finishes.

The Nonalux is a lighter version of our Hexalux with nine arms in a flat circle radiating from a center machined aluminum box. Equipped with porcelain candelabra sockets in metal cups. Arms and stem are 1/2” OD pipe. The fixture shown is lamped with ‘Xelogen’ xenon bulbs and is silver powder coat. It can take any candelabra base lamp. Stem up to 36” included with fixture.

Lamping - 9 x candelabra screw base

incandescent: max. 75 watt B/C/CA (torpedo), G (globe), S (straight sided), T (tubular)

xenon: max. 75 watt T (shown)

fluorescent: max. 14 watt B/C/CA (torpedo), G (globe)

LED: max. 6 watt B/C/CA (torpedo), G (globe)

Options

Arm quantity and length can be altered.

Pricing

Nonalux $1330

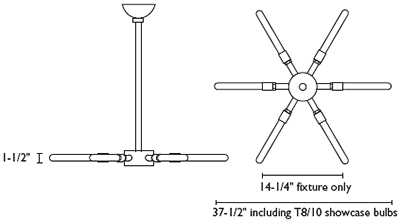

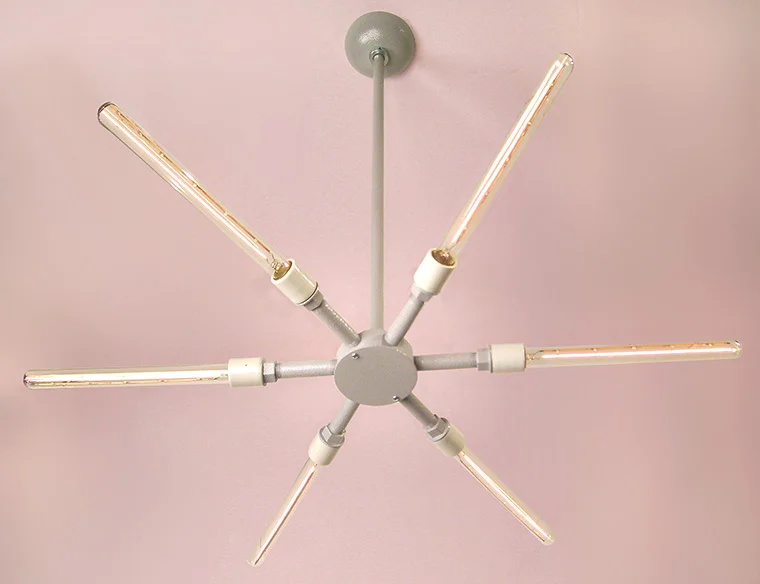

The Hexalux C, another general lighting fixture from the Hexalux family, has arms tipped with white, medium base porcelain sockets. It is shown with 12” long clear showcase bulbs. The fixture is painted silver powder coat. Stem up to 36” included with fixture.

Lamping - 6 x medium screw base

incandescent: max. 150 watt A (standard), B/C/CA (torpedo), G (globe), S (strait sided), T (tubular) (12" T8 shown in top & bottom photos)

halogen: max. 150 watt A19, BT15, T8/10

fluorescent: max. 42 watt A19, G (globe) (G25 shown in middle photo), spiral

LED: max. 21 watt A19

Options

Arm length can be altered.

Available with 3 or 4 arms.

The Hexalux Piccolo is a special mini version or the Hexalux using our small glass globes. Great for use in tight, hard to light areas. The socket housings are natural cast aluminum and the rest of the fixture is painted silver powder coat. Stem up to 36” included with fixture.

Available in ‘A’ with clear glass, or ‘B’ with glass sandblasted on the interior. See options page.

Lamping - 6 x medium screw base

halogen: max. 43 watt A19

fluorescent: max. 13 watt A19, spiral

LED: max. 13 watt A19

Pricing

Hexalux Piccolo A $765

B - Sandblasted glass globes, add $60

Quadlux Piccolo A $615

B - Sandblasted glass globes, add $40

Trilux Piccolo A $510

B - Sandblasted glass globes, add $30

The Twelvalux is an oversize version of our Hexalux with twelve lamp holders arranged in a flat circle for lighting large areas.

The center box is machined aluminum. The socket housings are natural cast aluminum, the rest of the fixture is painted silver powder coat. Stem up to 36” included with fixture.

Available in ‘A’ with clear glass, ‘B’ with glass sandblasted on the interior or ‘PR’ with prismatic glass. See options page.

Lamping - 12 x medium screw base

halogen: max. 72 watt A19, BT15, T8/10

fluorescent: max. 26 watt A19, spiral

LED: max. 20 watt A19

Options

Arm length can be altered.

Can be made with fewer arms.

A pendant version of our glass globe made in two diameters taking a variety of glass globes. The socket housing is natural cast aluminum (optional guard also) and the stem and canopy are painted silver powder coat.

Available in ‘A’ with clear glass, ‘B’ with glass sandblasted on the interior or ‘PR’ with prismatic glass. See options page.

Lamping - medium screw base

Small glass globe

halogen: max. 43 watt A19

fluorescent: max. 13 watt A19, spiral

LED: max. 13 watt A19

Standard glass globe

halogen: max. 72 watt A19, BT15, T8/10

fluorescent: max. 26 watt A19, spiral

LED: max. 21 watt A19

Large glass globe

halogen: 150 watt A19/21, BT15, T8/10

fluorescent: max. 42 watt A19/21, spiral

LED: max. 21 watt A19/21

The Linealux was designed primarily for vanity lighting, but can also be used for general lighting, mounted horizontally, vertically or ceiling mounted. The standard model uses small glass globes (shown), but other globes can also be used.

The socket housings are natural cast aluminum, the rest of the fixture is painted silver powder coat.

Available in ‘A’ with clear glass, or ‘B’ with glass sandblasted on the interior. See options page.

Lamping - 4 x medium screw base

halogen: max. 43 watt A19

fluorescent: 13 watt A19, spiral

LED: max. 13 watt A19

Options

Many sizes and configurations available.

Pricing

Linealux A $585

B - Sandblasted glass globes, add $40

This is a trim, single point fixture made in two diameters taking a variety of glass globes. In addition to ceiling mounting, they are ideal wall mounted for vanity lighting. The socket housing is natural cast aluminum (optional guard also).

Available in ‘A’ with clear glass, ‘B’ with glass sandblasted on the interior or ‘PR’ with prismatic glass. See options page.

Lamping - medium screw base

Small glass globe

halogen: max. 43 watt A19

fluorescent: max. 13 watt A19, spiral

LED: max. 13 watt A19

Standard glass globe

halogen: max. 72 watt A19, BT15, T8/10

fluorescent: max. 26 watt A19, spiral

LED: max. 21 watt A19

Large glass globe

halogen: 150 watt A19/21, BT15, T8/10

fluorescent: max. 42 watt A19/21, spiral

LED: max. 21 watt A19/21

The Monolux & Bilux Sconces are general lighting fixtures primarily for wall mounting. The socket housings (and optional guards) are natural cast aluminum, the rest of the fixture is painted silver powder coat.

Available in ‘A’ with clear glass, ‘B’ with glass sandblasted on the interior or ‘PR’ with prismatic glass. See options page.

Lamping - 1 or 2 x medium screw base

Small glass globe(s)

halogen: max. 43 watt A19

fluorescent: max. 13 watt A19, spiral

LED: max. 13 watt A19

Standard glass globe(s)

halogen: max. 72 watt A19, BT15, T8/10

fluorescent: max. 26 watt A19, spiral

LED: max. 21 watt A19

Large glass globe(s)

halogen: max. 150 watt A19/21, BT15, T8/10

fluorescent: max. 42 watt A19/21, spiral

LED: max. 21 watt A19/21

Options

Many configurations and variations possible.

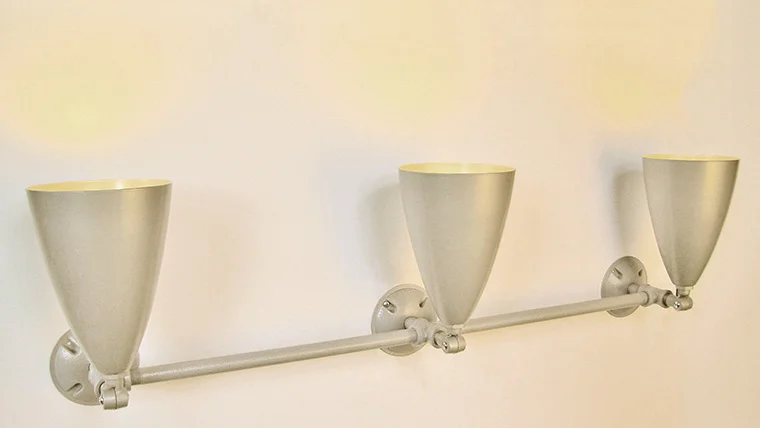

This is a sconce version of our Bullet Uplight. It can be installed facing up or down, horizontally or vertically. Can also be ceiling mounted. Bullets are spun aluminum, standard finish is silver powder coat.

Lamping - 1, 2 or 3 x medium screw base

halogen: max. 250 watt PAR30/38

fluorescent: max. 30 watt BR30/40, PAR30/38

LED: max. 24 watt BR3040, PAR30/38

Options

Many variations possible.

Designed primarily as a vanity fixture, the Skalbarre works in many situations. It can be used as a sconce, mounted horizontally or vertically, or as a pendant (with stem and canopy). Constructed of an aluminum tube with porcelain sockets in metal housings mounted on 6-1/2” centers. The standard versions have a single mounting plate in the center of the fixture. Finish is silver powder coat. Shown lamped with ‘Xelogen’ xenon bulbs. The fixture can take any candelabra based bulb.

Lamping - 5 or 8 x candelabra screw base

incandescent: max. 75 watt B/C/CA (torpedo), G (globe), S (side sided), T (tubular)

xenon: max. 75 watt T (tubular)

fluorescent: max. 14 watt B/C/CA (torpedo), G (globe), spiral

LED: max. 6 watt B/C/CA (torpedo), G (globe)

Options

Available in custom lengths.

Meets ADA requirements

The Hemisconce provides soft light through its perforated front piece (optional white acrylic diffuser shown in insert) and additionally throws light out an open top and bottom. When used without the diffuser, a clear bulb will cast a pattern through the perforations. The front piece is perforated aluminum, the frame is brushed aluminum. The fixture is available with one or two sockets side by side or with a center mounted double socket. The fluorescent version has a ballast mounted within the fixture.

Lamping - 1/2 side by side sockets

incandescent: 1/2 x clear 75 watt T8, 12”

compact fluorescent: 1/2 18 or 24 watt long biax

LED: 1/2 x 5 watt T10, 12”

Lamping - center double socket

halogen: max. 50 watt A19, T8/10

compact fluorescent: max. 23 watt A19, spiral

LED: max 15 watt A19

Options

Available without the white opal diffuser.

Meets ADA requirements

The Cylisconce casts patterns of light through its perforated shade when a clear showcase bulb is used. Light also escapes from the open top and bottom. When a PAR16 bulb is used, it throws a bright pool of light upwards and highlights the perforations. The cylinder is perforated aluminum and the stem and mounting plate are painted silver powder coat.

Lamping - medium screw base

linear bulbs

incandescent: max. 75 watt 12” clear T8/10 (shown)

LED: 5 watt 12” T10

spot bulbs

halogen: max. 75 watt R20, PAR16/20

compact fluorescent: max: 11 watt R20

LED: max: 10 watt R20, PAR16/20

The Torch generates soft light both through the large white diffuser lined perforated shade and out the open top. Its max. 300 watts make it a bright, large source that can be dimmed down to a warm, soft glow or up to fill a room. Perfect for restaurants, lobbies or flanking a sofa for reading. A small plate mounted to the wall supports the torchere at its waist. A full range dimmer is built into the stem. The shade is perforated aluminum and the rest of the fixture is painted silver powder coat. Fixture supplied with cord and plug.

Lamping - medium screw base

halogen: max. 250 watt A19/21/23, BT15, T8/10

fluorescent: max. 85 watt A19/21/23, spiral

LED: max. 21 watt A19/21/23

This torchere works as a general lighting fixture when using either clear or sandblasted glass. It is available with optional half-sandblasted globes (clear at the top) that will let reflector lamps project out the top of the globes turning this into an uplight fixture. A dimmer is mounted in the stem. The socket housings are natural cast aluminum and the rest of the fixture is painted silver powder coat. Fixture supplied with cord and plug.

Available in ‘A’ with clear glass, ‘HB’ with the glass half sandblasted on the interior, barrel only leaving the end hemosphere clear, ‘B’ with glass sandblasted on the interior or ‘PR’ with prismatic glass. See options page.

Lamping - 1/2 x medium screw base

General lighting

halogen: max. 150 watt A19/21, BT15, T8/10

compact fluorescent: max. 42 watt A19/21, spiral

LED: max. 21 watt A19/21

Up lighting

halogen: max. 75 watt PAR20/30

compact fluorescent: max. 16 watt R20, BR30, PAR20/30

LED: max. 18 watt R20, BR30, PAR20/30
